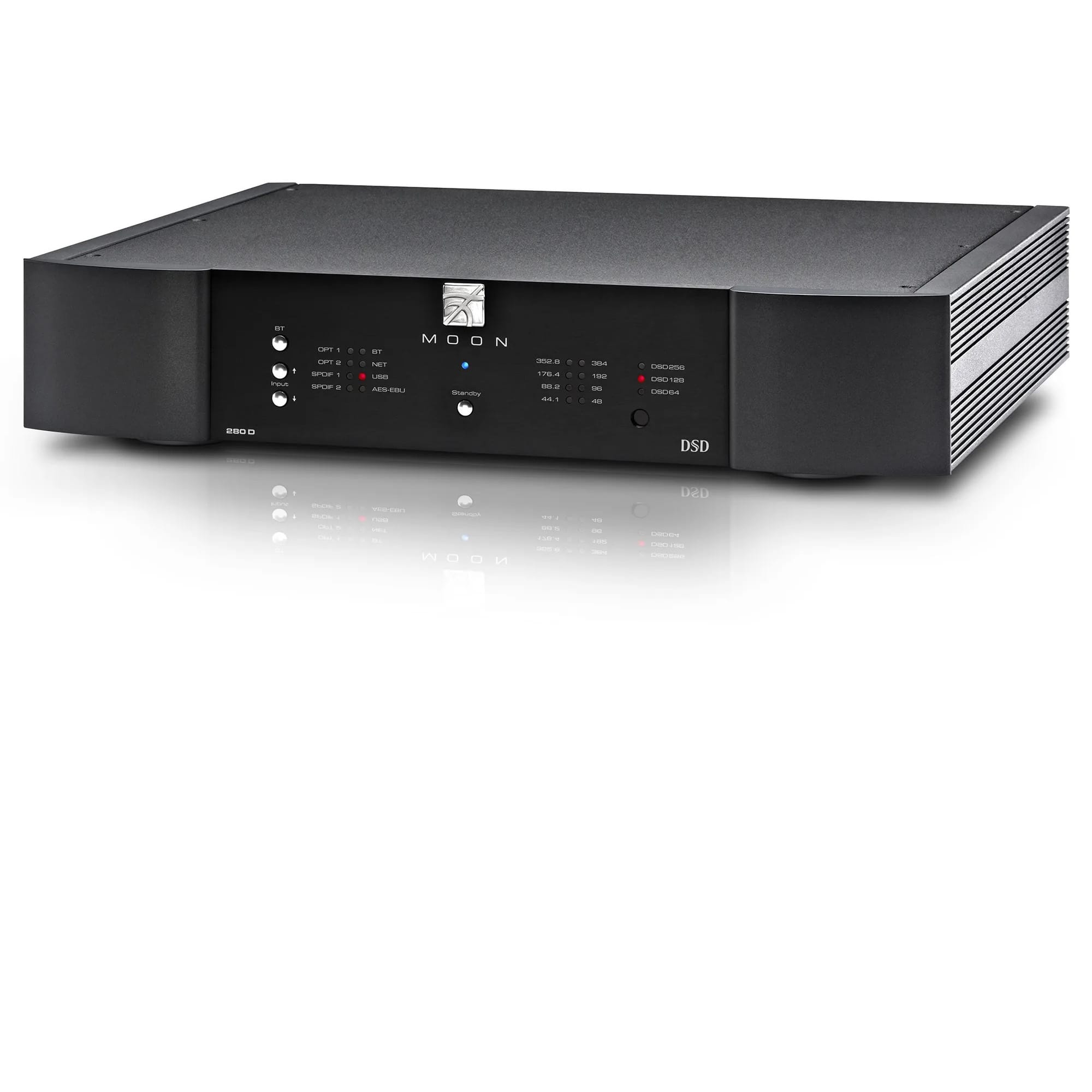

Moon Neo 280D MiND 2 Demo

– Fully asynchronous DAC supports DSD up to DSD256 (USB only) and PCM from 44.1kHz to 384kHz (32-bit on USB only)

– Eight (8) digital inputs (AES/EBU x 1, S/PDIF x 2, TosLink x 2, USB x 1, Bluetooth and Ethernet or WiFi for MiND) allowing for a connection to virtually any digital source.

– Optional MiND (MOON intelligent Network Device) module (the 8th input) via WiFi or Ethernet input for multi-room streaming

– USB input with galvanic isolation which eleminates all ground current (i.e. no electrical connection) between the USB device (computer, music server, etc.) and the 280D, preserving the accuracy of the audio signal

– The entire analog stage is a fully balanced differential circuit for increased dynamic range and headroom,higher resolution, as well as improved signal-to-noise ratio

– Advanced analog signal path using an exceptional DC servo circuit and proprietary 18dB/octave analog filter

-RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates

– IR input for external control

-SimLink™ controller port for 2-way communications with other compatible MOON components

– 4-Layer printed circuit boards with pure copper tracings for a much shorter signal path; This results in greater sonic accuracy and a dramatically improved signal-to-noise ratio

– Rigid chassis construction to minimize the effects of external vibrations

– Optimized selection of very high quality electronic components in a symmetrical circuit design
Includes CRM-2 remote control.

Specifications
– Frequency response (full range): 2Hz – 100kHz +0/-3dB
– THD @ 1kHz, 0dBFS (A-weighted): < 0.005%
– Intermodulation distortion: < 0.005%
– Dynamic Range: > 120dB
– Signal-to-noise Ratio: > 120dB @ full output
– Channel Separation: > 110dB
– Intrinsic Jitter: 10 picosecond RMS
– Bit-depth range: 6 – 32 bits
– Sampling rate frequency range: 44.1 – 384kHz
– Analog output impedance: 100Ω
– Shipping weight: 14 lbs / 6.3 Kgs
– Dimensions (width x height x depth): 42.9 x 8.9 x 33.3 cm.
